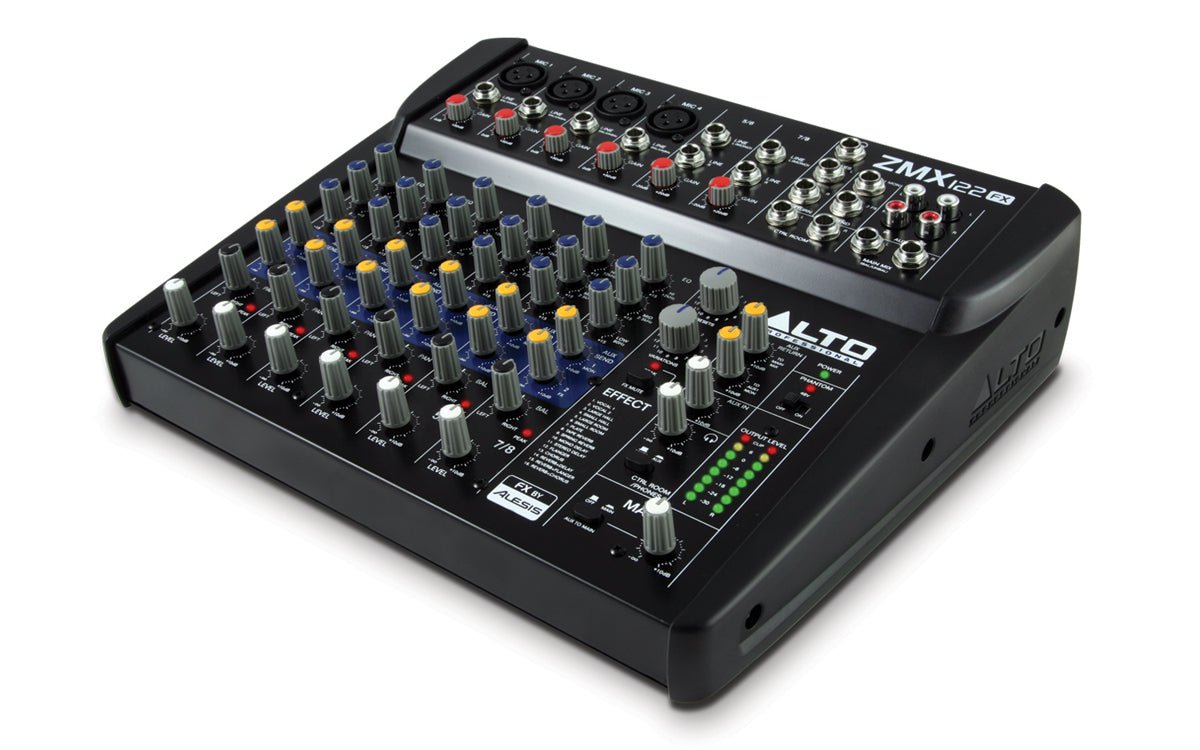

Alto ZMX122 8-Channel Compact Mixer with Effects

$199.99

Only 1 piece in stock!


  • 16 total inputs including XLR jacks w/ phantom power on ch. 1-4
  • On-board Alesis digital effects with 256 variations
  • Expanded channel count perfect for small groups or sub-mixes
  • 4 mic input channels with gold-plated XLR and balanced line inputs
  • Two stereo input channels with balanced TRS jacks
  • High headroom circuitry offering extra dynamic range
  • Ultra-low-noise discrete mic preamps
  • 3-band EQ on each channel
  • Footswitch input for effects on/off (sold separately)
  • 2 aux sends per channel for external effects and monitoring
  • 2-bus design with Main and Control Room 1/4” stereo outputs
  • Aux inputs/outputs for external audio source integration
  • Switchable phantom power

Professional Mixing Features with a Go-Anywhere Attitude

The ZMX122FX is an eight-channel, two-bus mixer with all the inputs, outputs, routing, EQ, and effects you need for more intimate live performance reinforcement situations. It features four microphone inputs with balanced TRS jacks (two with Phantom Power), a three-band EQ and two AUX sends on each of the four mono channels and the two stereo channels, and even two-track inputs for integrating audio playback devices. The ZMX122FX is a perfect, take-anywhere professional mixer.

256 Onboard Effects

Regardless of what you're mixing, give your mix a professional edge with 256 onboard 24-bit DSP effects designed in partnership with Alesis, a coveted creator of sound-shaping digital effects that has been setting standards for DSP technology for nearly three decades. Choose from room and space delays, small and large hall acoustics, plate and spring reverbs, flangers, chorus effects and more. The ZMX122FX offers 16 variations of 16 professional Alesis effects from which to build, tweak, and dial in your sound. There's even a footswitch input so you can bypass all effects hands-free (footswitch not included).

Versatile Inputs and Outputs

The ZMX122FX is the swiss army knife that your creative life needs. Not only can you can plug dynamic, condenser, and wireless microphones into the first four channels, but you also get two stereo channel inputs for keyboards, drum machines, and other instruments. Plus, you can easily plug in your MP3 player, CD player, or audio from a DVD player into the CD/TAPE inputs. You also have two AUX sends that you can use to send streams of audio from your mixer to a digital effects unit, stage monitor, or any number of sources. Choose the ZMX122FX as the audio central command for your live performances, home studio, or video suite.

High Headroom, Low Noise

The ZMX122FX packs an enormous amount of features into a very compact space, but we took a no-compromise approach where the purity of your mix is concerned. This compact mixer brings the same standard of quality to your performances as our top-of-the-line models. All Alto Professional ZMX mixers are designed with high headroom and ultra low-noise, discrete mic preamps so you always get the full dynamic range of your mix every time. Pristine sound. No compromises.

Visualize Your Mix

We designed every ZMX mixer with your performance in mind. Oftentimes venues are dark and it can be hard to see what you're working with. Alto Professional solves this problem by not only color coding each section of the mixer, but also by using brightly colored knobs so that you can easily find what you need to adjust before you ever lay a finger on the mixer. Our blue, red, yellow and white pots are instantly easy to identify in dim lighting. LED indicators for output level, peak, and phantom power also assist in making sure that you have multiple visual cues that compliment everything you're hearing.

TECH INFORMATION

Input Channels: Mono channels (Ch. 1 - 4)
Microphone Input: Electronically balanced, discrete input configuration
Frequency Response: 20 Hz to 22 kHz, +/-1 dB
Distortion (THD&N): ≦0.005% At +4 dBu, 1 kHz
Gain range: 0 dB to 50 dB (Mic)
Maximum Voltage Gain: 70 dB Ch. Mic input → Main Mix out & Tape out, 80 dB Ch. Mic input → Control Room & Phones, 60 dB Ch. Mic input → Aux send
SNR (Signal to Noise Rate ): ≧110 dBu
Phantom power (Mic Pin 2 / Pin 3 and Pin 1): +48 V - with switch control

Line Input: Electronically Balanced
Frequency Response: 20 Hz to 22 kHz, +/-1 dB
Distortion (THD&N): ≦0.005% at + 4 dBu, 1 kHz
Gain Range: 15 dBu to 35 dBu

Stereo Channels: (Ch. 5 - 8)
Line Input: Electronically Balanced
SNR (Signal to Noise Ratio): ≧110 dBu
Frequency Response: 20 Hz to 22 kHz, +/-1 dB
Distortion (THD&N): ≦0.005% at +4 dBu, 1 kHz
Gain range: -20 dBu to +20 dBu, 60 dB Ch. Line → Main Mix out
Maximum Voltage Gain: 20 dB FX Return → Main Mix out, 20 dB RCA Tape input → Main Mix out

Impedance
Microphone Input: 3.9 kOhms
All Other Inputs: 10 kOhms or greater
Tape Out: 1 kOhms
All Other Outputs: 120 Ohms

Equalization
Mono Channels: High ±15 dB @ 12 kHz, Mid ±15 dB @ 2.5 kHz, Low ±15 dB @ 80 Hz
Stereo Channels: High ±15 dB @ 12 kHz, Mid ±15 dB @ 2.5 kHz, Low ±15 dB @ 80 Hz

Alesis DSP Section
A/D And D/A Converters: 24-bit
DSP Resolution: 24-bit
Type of effects: Hall, Room, Vocal & Plate Reverbs Mono & Stereo Delay (max delay time 650 ms) Chorus, Flanger & Reverb modulations, Reverb+Delay, Reverb+Chorus, Reverb+Flanger combinations
Presets: 256
Controls: 16 x 16-position preset selector
Crosstalk: Adjacent Input ≦-80 dB @ 1 KHz (Ch. 1-6) , Input to Output ≦-75 dB @ 1 KHz (Stereo L/R, Ch. 1-4, Pan: panned hard left or right)

Main Mix Section
Tape, Aux, Phones Output
Output level: 0 dBu Unbalanced, 1/4" Jacks, Max out +22 dBu Unbalanced, 1/4" jacks
Noise (Bus noise): ≦-90 dB @ 20 Hz ~ 22 KHz (channel & Main level at 0 dB, other at minimum, DSP mute)

Power supply: 18 V, 1500 mA
Rated power consumption: 27 W


Dimensions (WxLxH): 256mm x 250mm x 72mm
Weight: 5.07 lb
