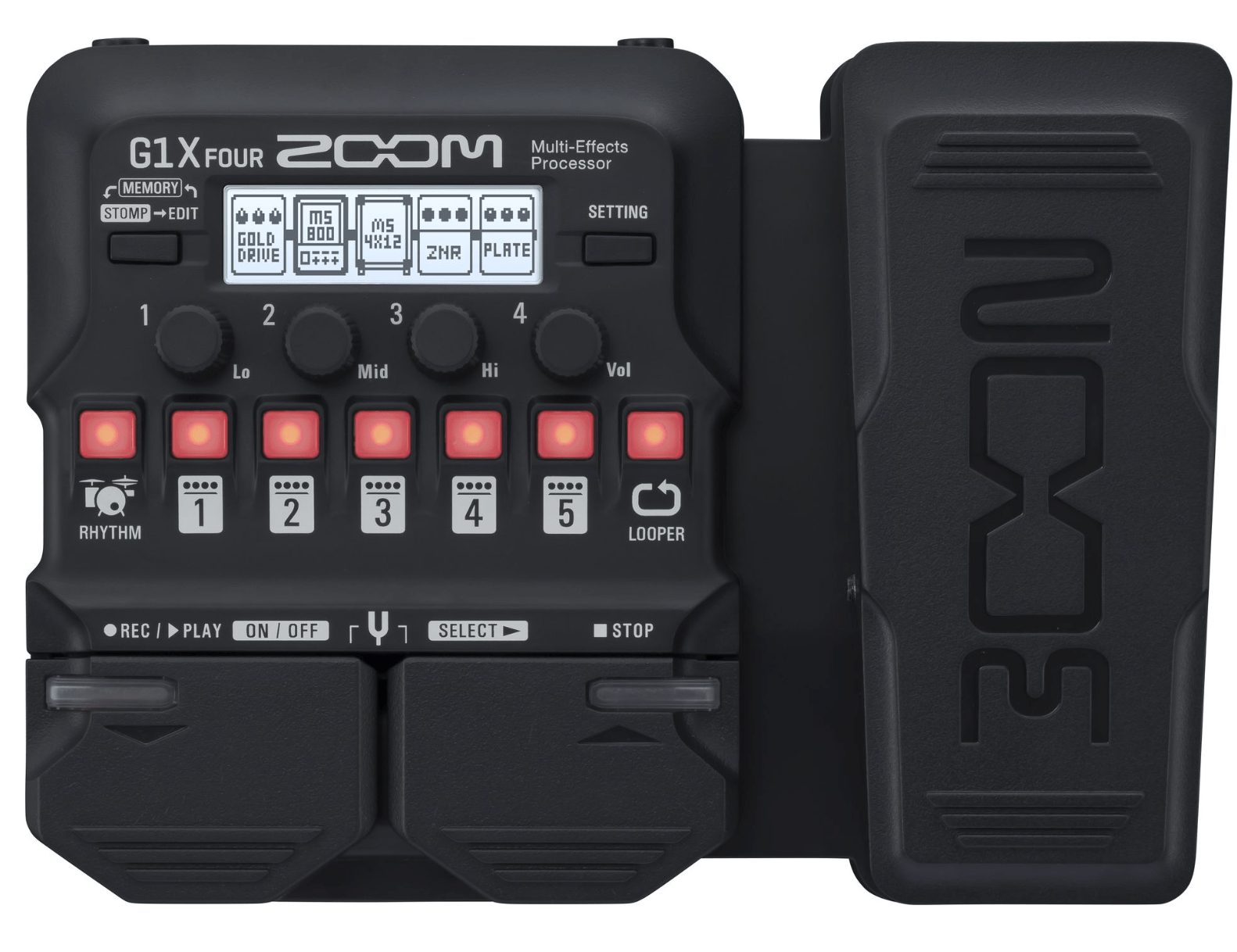

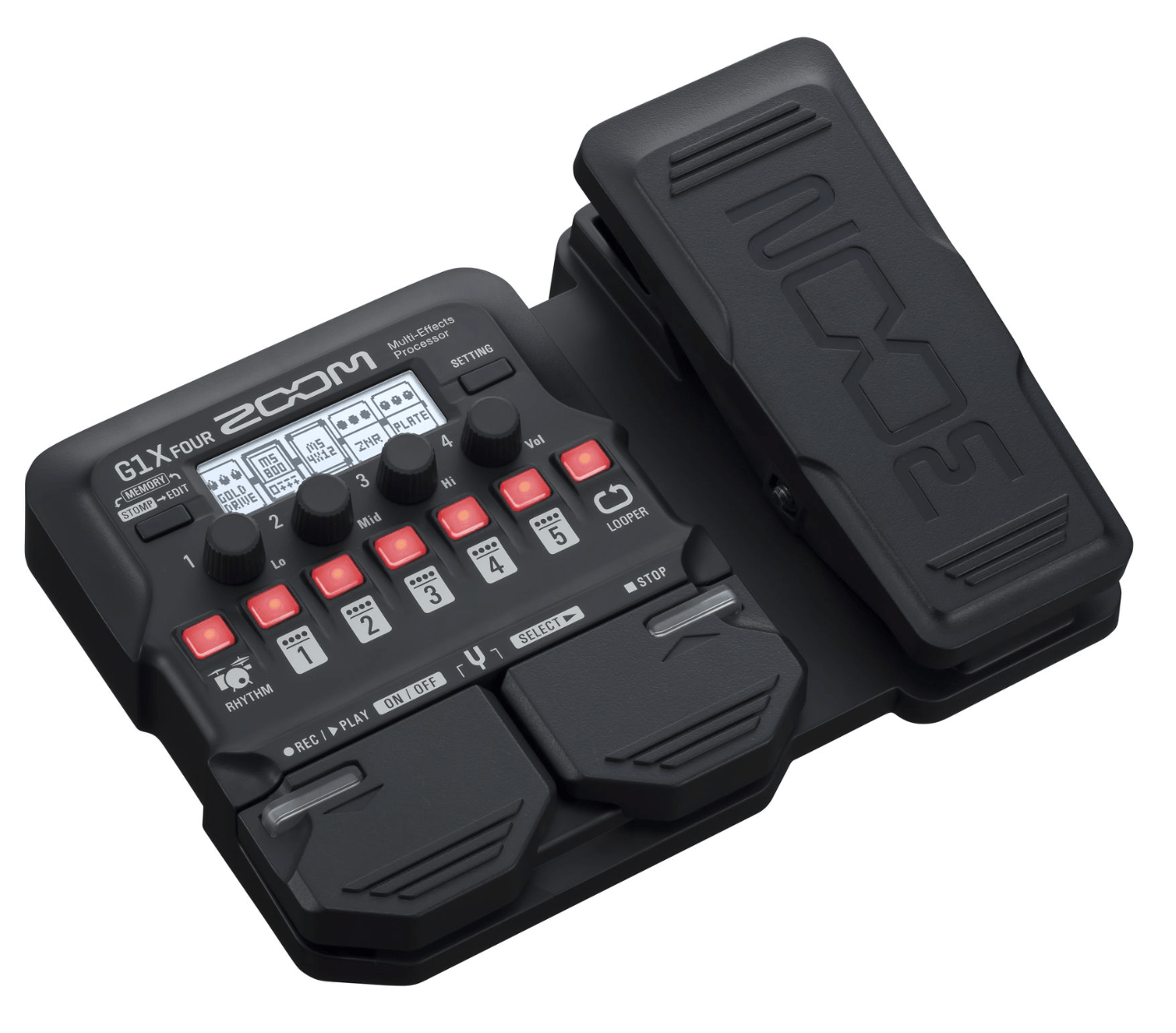

Zoom G1X Four Guitar Multi-Effects Processor
Guitar Multi-Effects Pedals
The Zoom G1 FOUR and G1X FOUR feature over 70 effects and amp models, looper and drum machine. Plus, access ZOOM Guitar Lab’s additional library of downloadable effects. Plug in and be amazed!
G1 Four / G1x Four Features
● G1 FOUR offers over 60 built-in effects
● G1X FOUR offers over 70 built-in effects
● 13 amp models for simulating classic rigs
● Up to 5 effects can be used simultaneously, chained together in any order
● Looper for recording up to 30 seconds / 64 beats of CD-quality audio with seamless start and end times
● ZOOM Guitar Lab software for creating, editing and managing effects and patches
● 68 built-in rhythm patterns which can be used in conjunction with the Looper
● 50 memory locations for storing user-created patches
● Auto Save function for automatic saving of all patch parameters
● Onboard chromatic tuner supports all standard guitar tunings, including open and drop tunings

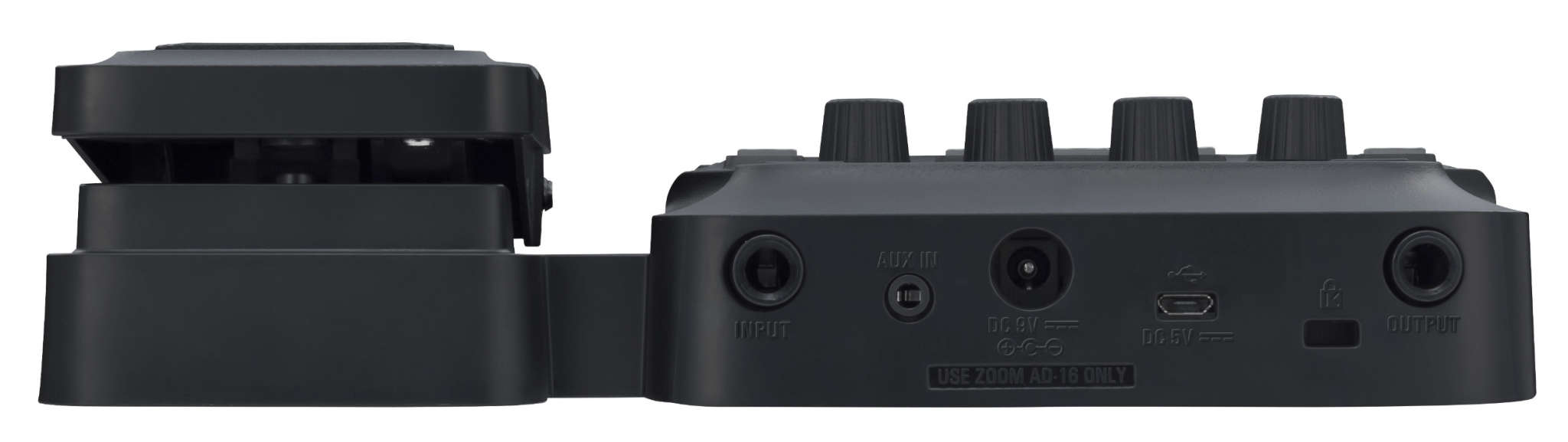

● Input jack accepts standard mono guitar cable (both active and passive instruments supported)
● Auxiliary input jack for connection of personal music players
● Output jack for connection to amp or headphones
● Runs on 4 AA batteries, with alkaline battery life of 18 hours
● USB port for firmware updates, power and connection to ZOOM Guitar Lab
Specs
General Specifications
| MAXIMUM NUMBER OF SIMULTANEOUS EFFECTS | 5 |
| USER PATCHES | 50 |
| SAMPLING FREQUENCY | 44.1 kHz |
| A/D CONVERSION | 24-bit, 128× oversampling |
| D/A CONVERSION | 24-bit, 128× oversampling |
| SIGNAL PROCESSING | 32−bit |
| DISPLAY | 128x32 dot matrix LCD |
Input
| INPUT | Standard mono phone jack | Rated input level: -20 dBu | Input impedance (line): 470 kΩ |
| AUX IN | Stereo mini jack | Rated input level: -10 dBu | Input impedance (line): 1kΩ |
Output
| OUTPUT | Standard stereo phone jack (combined line/headphone) | Maximum output level: Line +2 dBu (10 kΩ or more output impedance) | Headphones 17 mW + 17 mW (32Ω load) |
Additional Specifications
| INPUT S/N | 120 dB |
| NOISE FLOOR (RESIDUAL NOISE) | -97 dBu |
| POWER | Power AC adapter: 9V DC 500mA center negative (ZOOM AD-16) | 4 AA batteries (about 18 hours continuous operation time when using alkaline batteries with the LCD backlight off) |
| USB | Connector: USB2.0 Micro-B |
| Guitar Lab | Standard: USB 1.1 Full Speed | |
| Supported cable: USB2.0 Micro-B cable | Use cables for data transfer. | Power can also be supplied through the USB port. | When using a cable designed only for power, other USB functions cannot be used. | |
| EXTERNAL DIMENSIONS | G1 FOUR | Height: 156 mm (D) × 130 mm (W) × 42 mm (H) | Weight: 340 g (excluding batteries) |
| G1X FOUR | Height: 156 mm (D) × 216 mm (W) × 52 mm (H) | Weight: 610 g (excluding batteries) |
