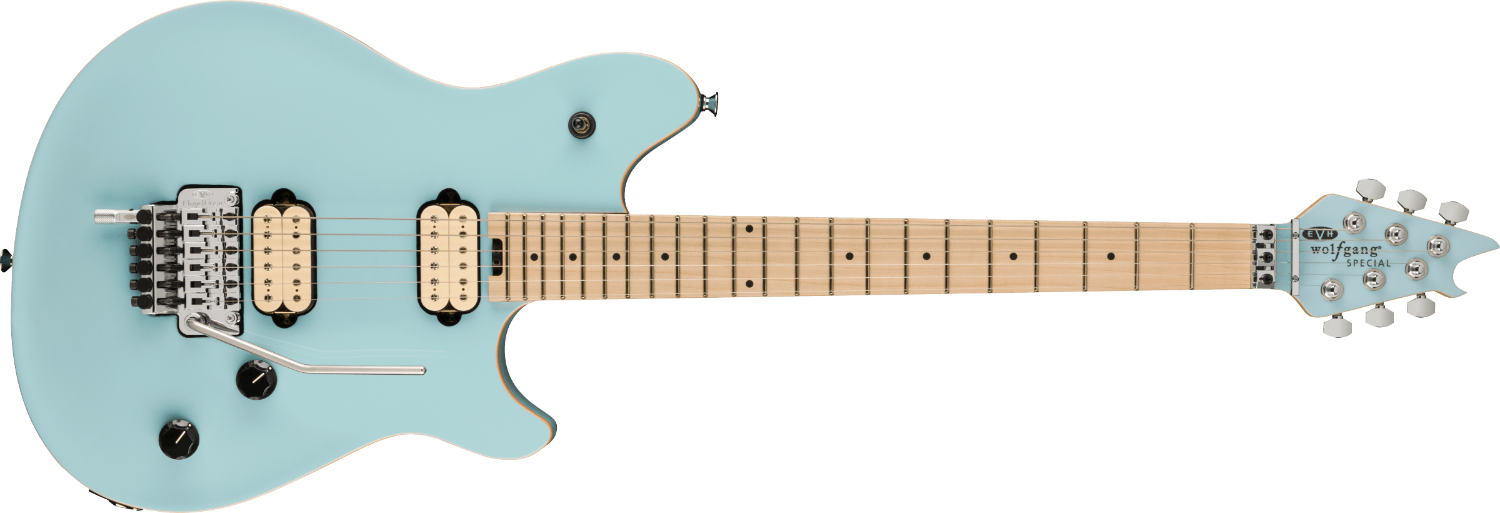

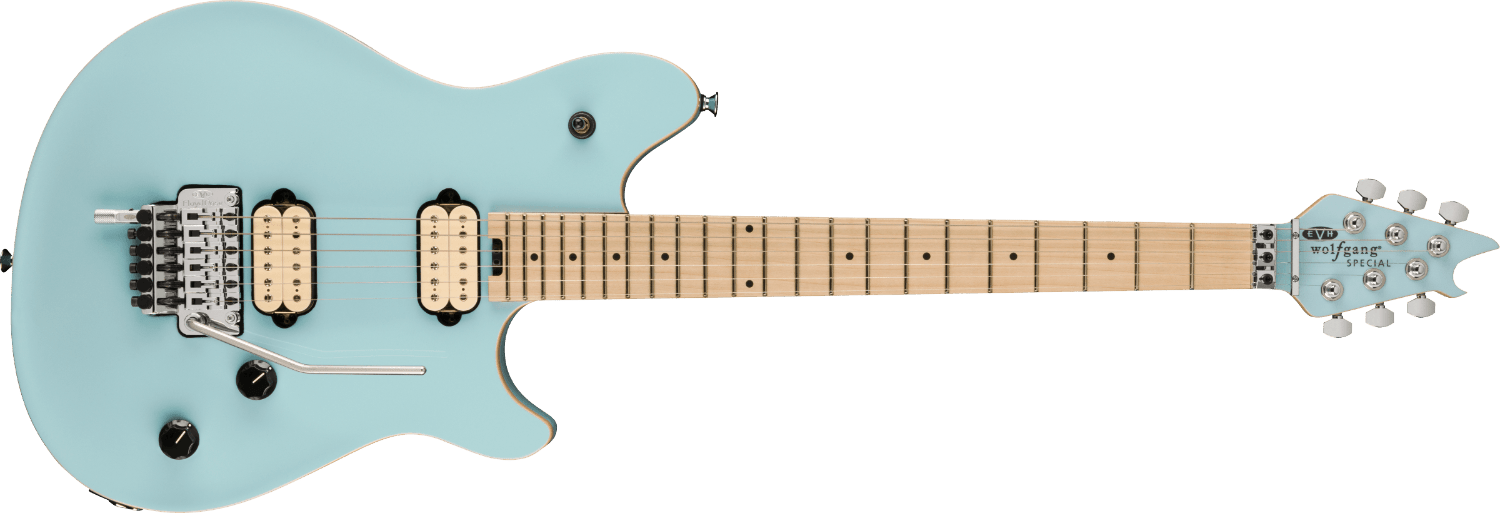

Road-tested in arenas around the world, the Wolfgang® Special is a purebred music-making machine, designed with stunning style, giant sound and high-speed playability.

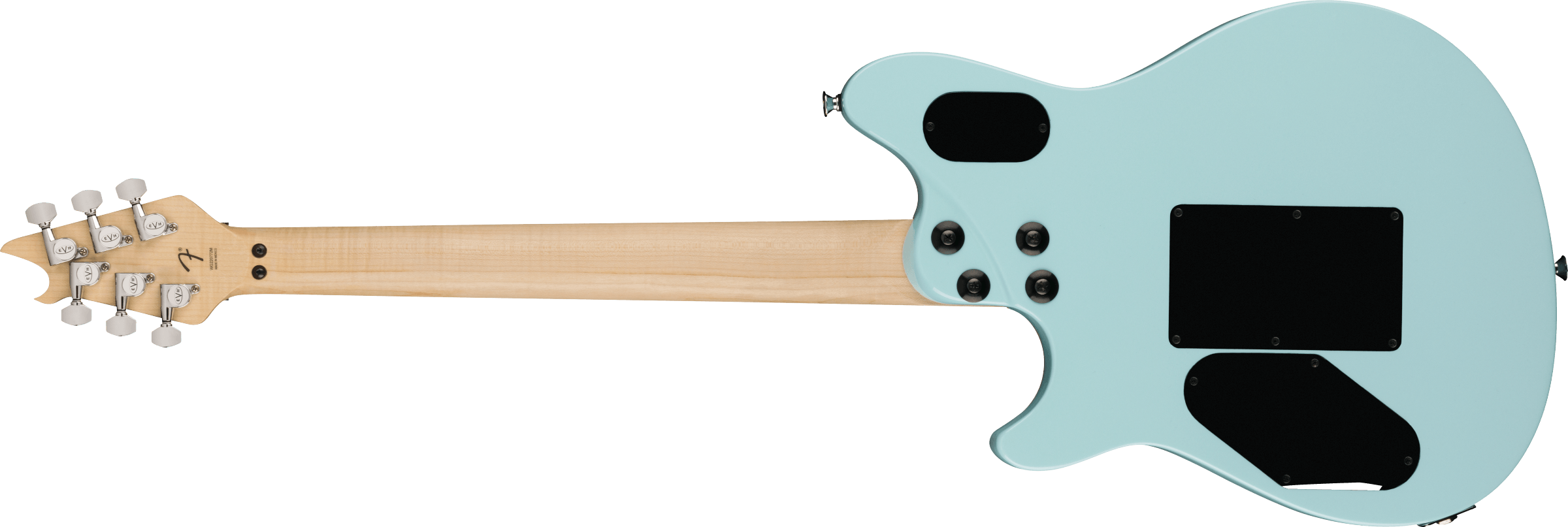

The Wolfgang Special features a basswood body with an arched top and a robust graphite-reinforced bolt-on quartersawn maple neck. The neck is carved and rolled to Eddie Van Halen’s exacting specifications and features a hand-rubbed urethane back finish. Primed for high performance, energetic riffing and blazing leads, the 12”-16” compound radius maple fingerboard has 22 jumbo frets and black dot inlays. Truss rod adjustments have also never been easier thanks to a spoke wheel conveniently located at the base of the neck.

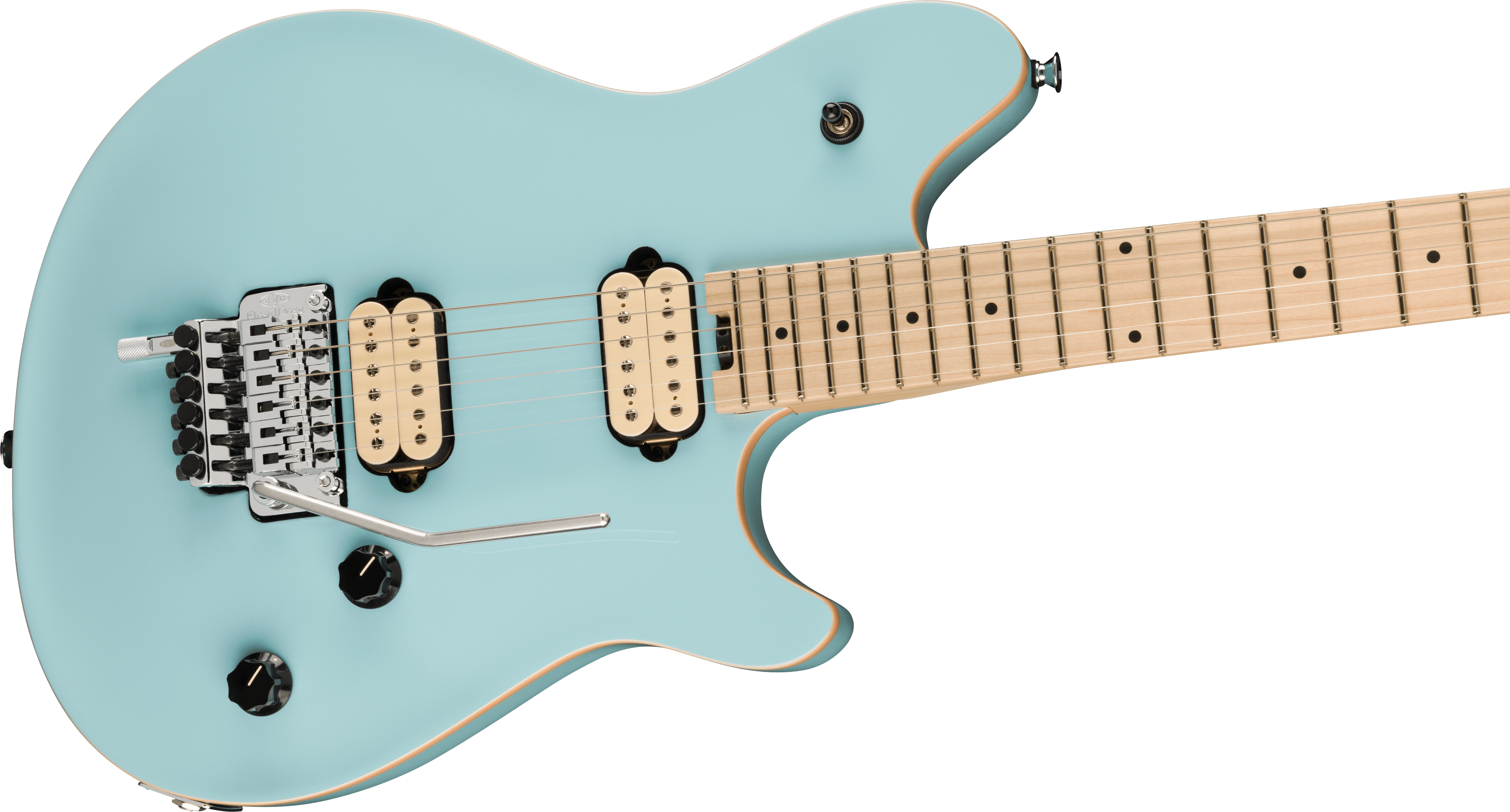

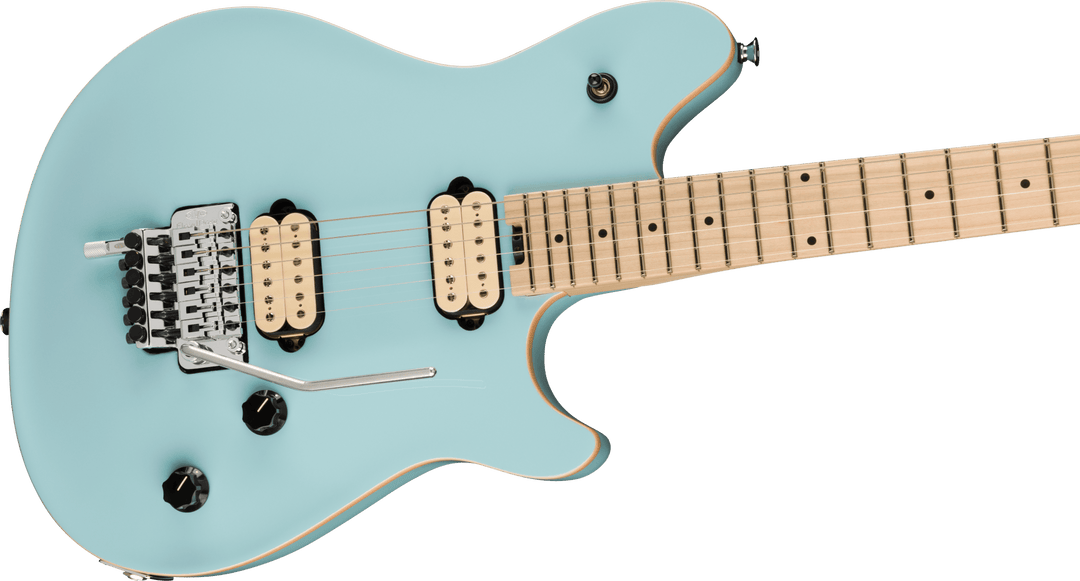

A pair of flagship custom designed black EVH® Wolfgang Alnico 2 humbucking pickups are mounted directly to the body, providing dynamic yet articulate voicing, as well as endless sustain for powerful chords and melody lines. A sturdy and dependable EVH-branded Floyd Rose® locking trem and Floyd Rose locking nut work in tandem for precise tuning even with extreme changes in pitch, while the EVH D-Tuna® retunes to drop-D and back with strict accuracy at the flick of a finger. The volume knob with treble bleed circuit has a 500K EVH Bourns® low friction pot for smooth swells and a tone control knob with a 250K Bourns high friction tone pot that prevents accidental tone shifting.
Specs
| Model Number | 5107701572 |
|---|---|
| Series | Wolfgang® Special |
| Color | Sonic Boom |
| Number of Strings | 6 |
| Orientation | Right-Hand |
| Body Finish | Gloss Polyurethane |
|---|---|
| Body Shape | Wolfgang® |
| Body Material | Arched Basswood |
| Body Binding | 1-Ply Cream |
| Bridge Pickup | Direct Mount EVH® Wolfgang® Humbucking |
|---|---|
| Neck Pickup | Direct Mount EVH® Wolfgang® Humbucking |
| Controls | Volume (500K EVH® Bourns® Low Friction Pot) with Treble Bleed Circuit, Tone (250K EVH® Bourns® High Friction Pot) |
| Pickup Switching | 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup |
| Pickup Configuration | HH |
| Neck Material | Quartersawn Maple |
|---|---|
| Neck Construction | Bolt-On with Graphite Reinforcement |
| Neck Thickness | .805" at 3rd & .890" at 12th Fret |
| Neck Finish | Hand-Rubbed Satin Urethane |
| Neck Shape | Wolfgang® Backshape |
| Scale Length | 25.5" (64.77 cm) |
| Fingerboard Radius | 12"-16" Compound Radius (304.8 mm to 406.4 mm) |
| Fingerboard Material | Maple |
| Number of Frets | 22 |
| Fret Size | Jumbo |

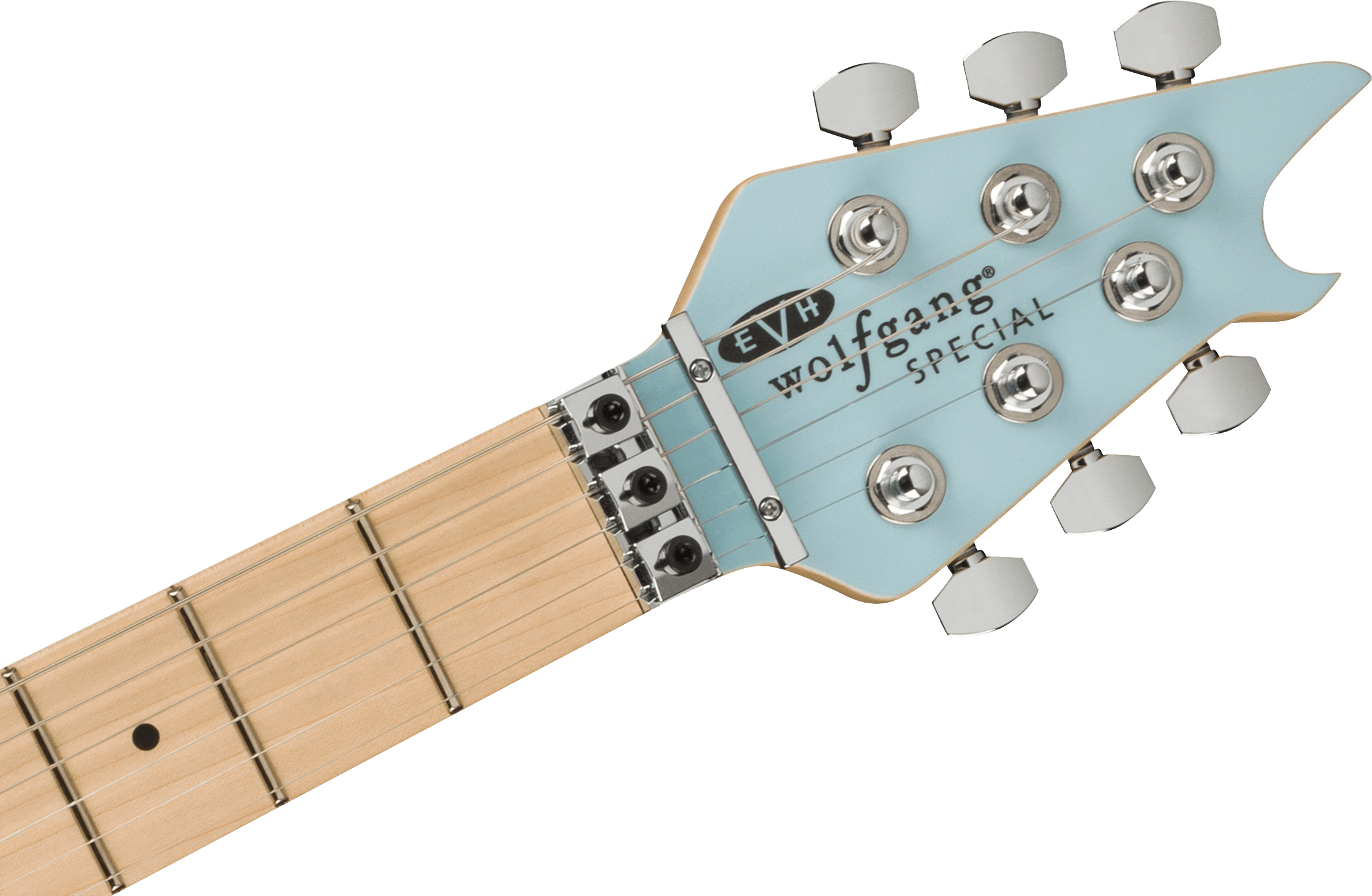

| Nut Material | Floyd Rose® R2 Locking |
| Nut Width | 1.625" (41.3 mm) |
| Position Inlays | Black Dot |
| Side Dots | Black |
| Truss Rod Nut | Heel-Mount Truss Rod Adjustment Wheel |
| Truss Rod Wrench | 2.5 mm Hex |
| String Trees | Floyd Rose® Retainer Bar |
| Headstock | EVH® Wolfgang® |
| Bridge | EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna® |
|---|---|
| Hardware Finish | Chrome |
| Tremolo Arm | Floyd Rose® 1000 Series Locking |
| Tremolo Block | Brass |

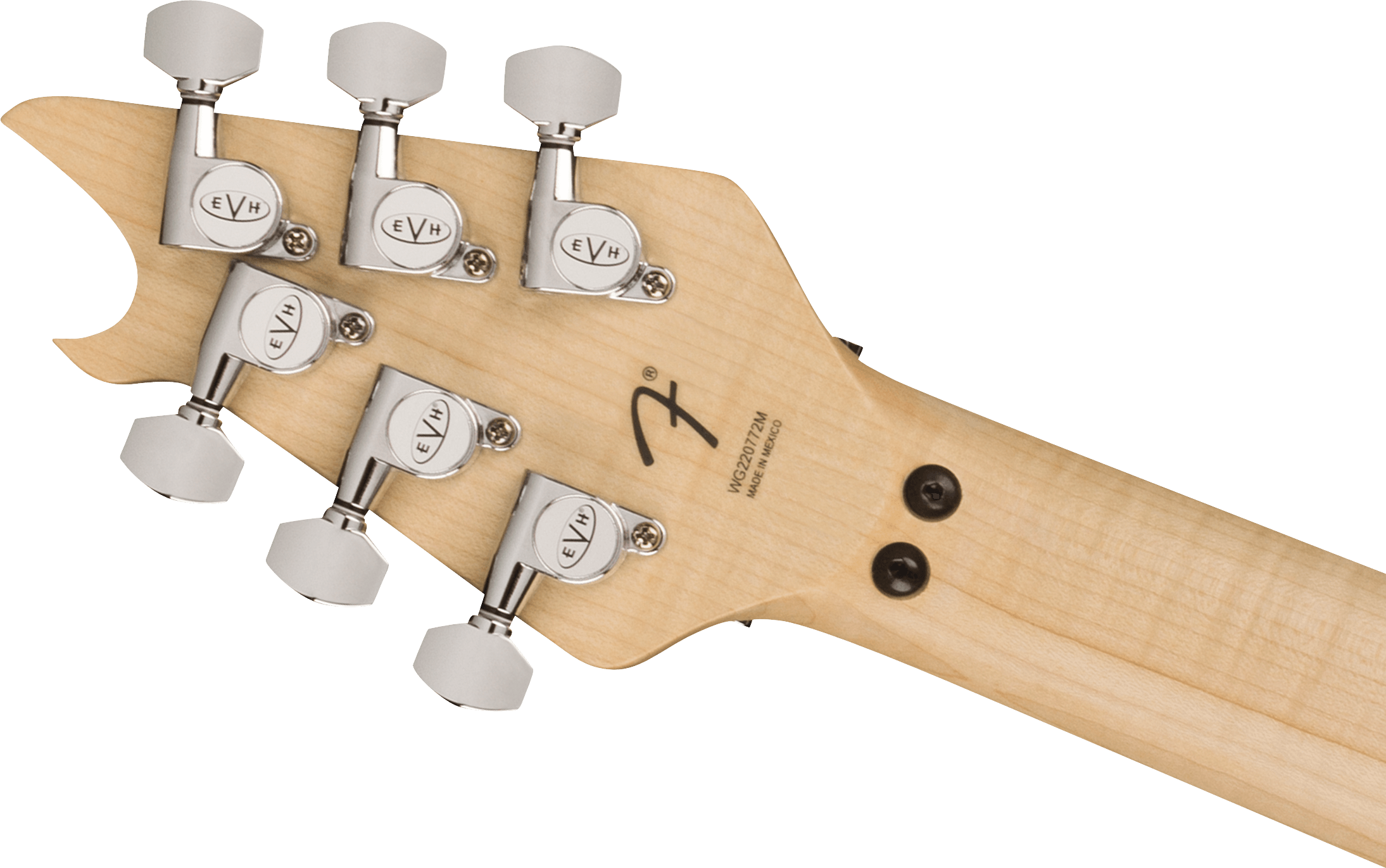

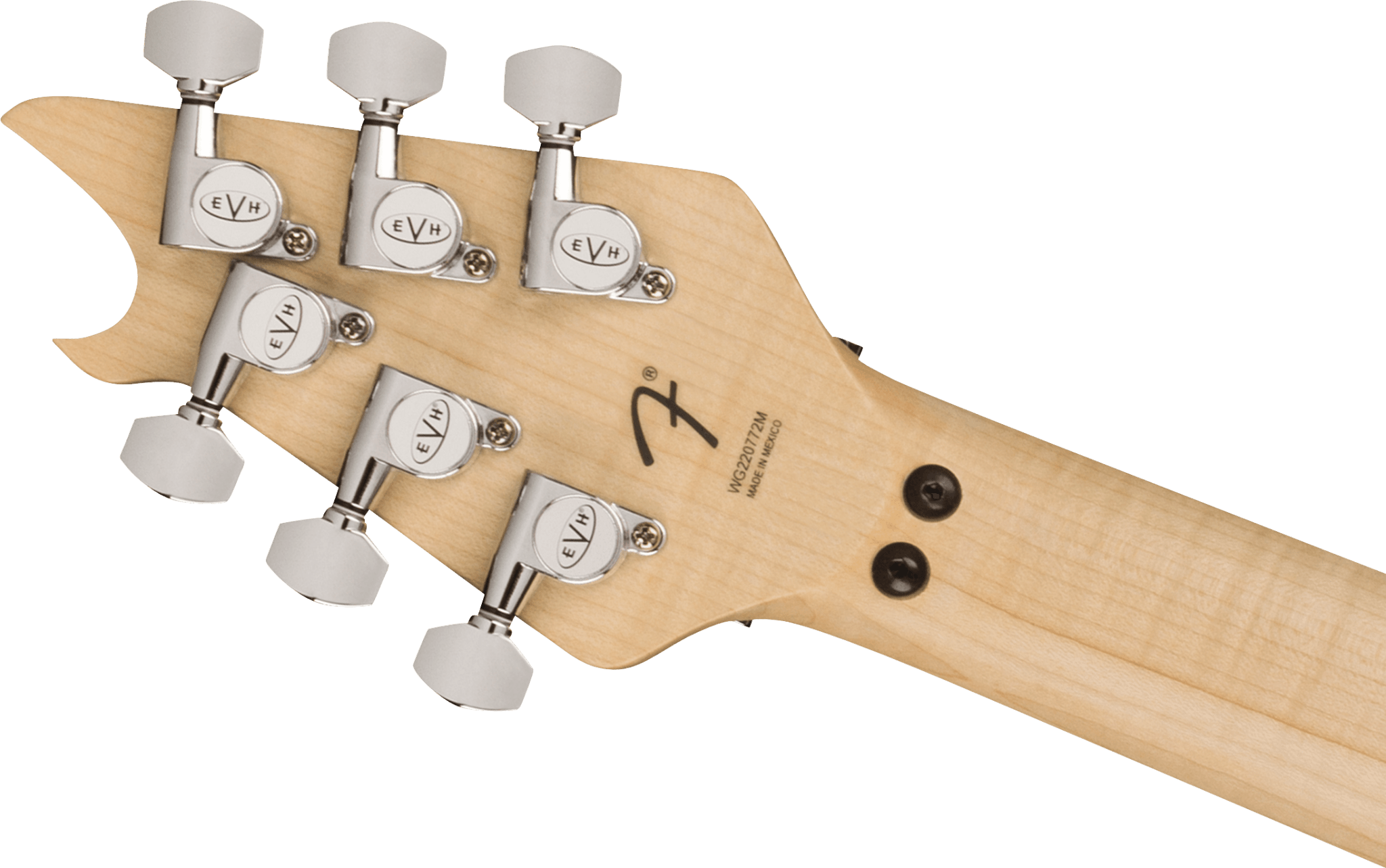

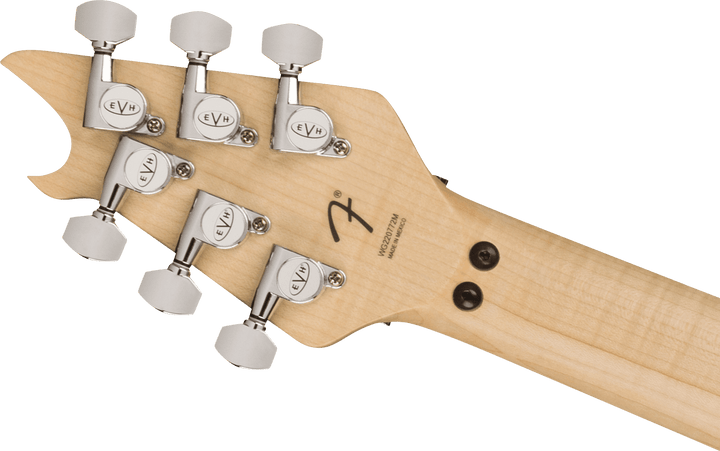

| Tuning Machines | EVH®-Branded Gotoh® |
| Control Knobs | Black Plastic with White Indicator |
| Saddle Height Wrench | N/A |
| Strings | EVH® Nickel Plated Steel (.009-.042 Gauges) |
|---|---|
| Strap Buttons | Oversized |
| Case/Gig Bag | Optional EVH® Wolfgang® Hardshell (p/n 009-0916-000); Optional EVH® Black Gig Bag (p/n 022-1512-006) |
|---|---|
| Included Accessories | Tremolo Arm, Hex Keys & User Manual |
