Peavey RX14 Compression Driver by Peavey Electronics

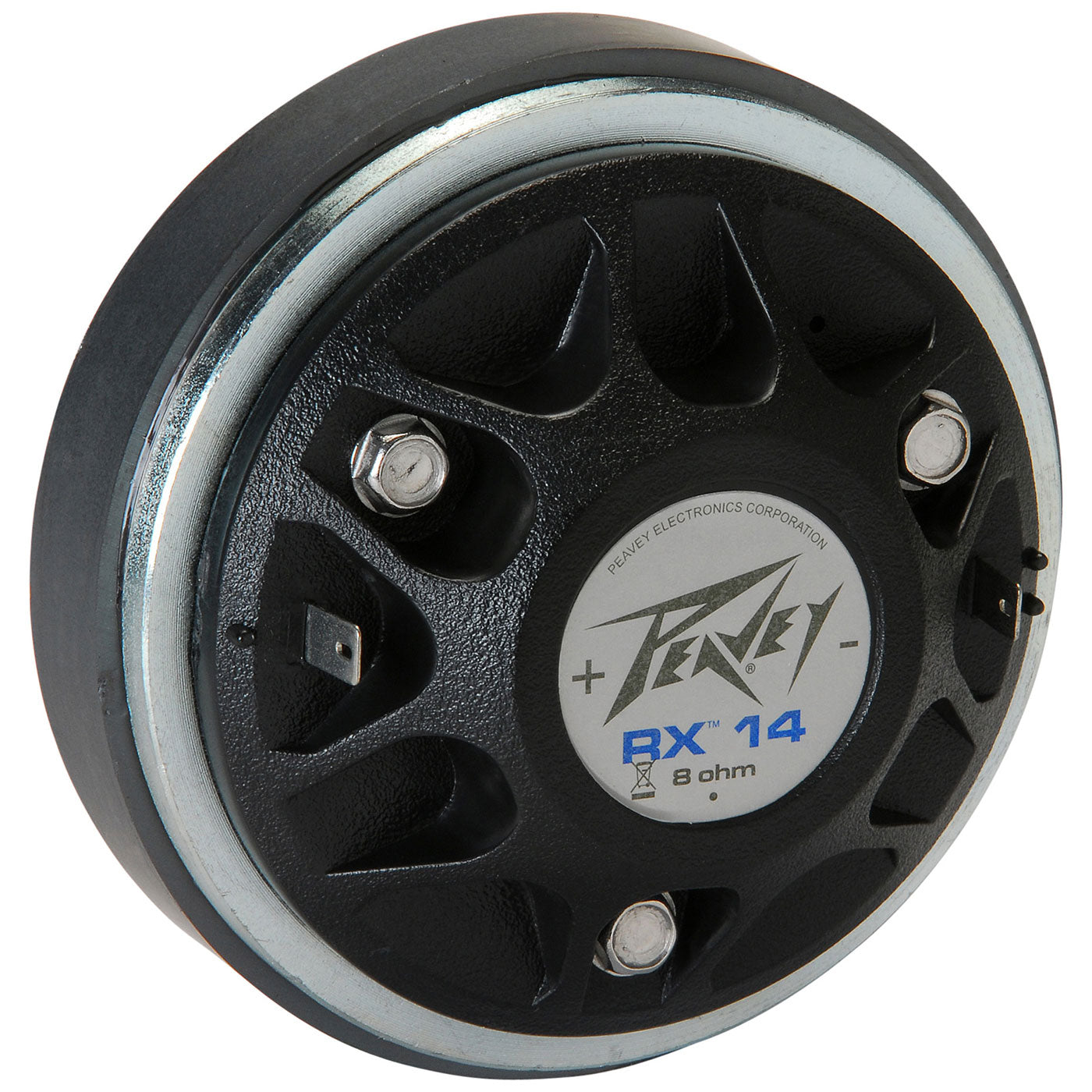

Peavey RX14 Compression Driver

$99.99
/
Shipping calculated at checkout.
  • In stock, ready to ship
  • Backordered, shipping soon
  • Canada-Wide Shipping 🇨🇦
  • Authorized dealer · Genuine products
  • Local support · Easy returns

Shipping Rates are calculated in the shopping cart.

Within Canada we may use Canada Post, Canpar or UPS for shipping.

Note: Certain large/heavy products and some remote, "beyond point" or rural locations may be subject to additional shipping charges. (ie. PO Box deliveries). In these instances, we will contact you before shipping your order to discuss options.

Features
  • 1.4"
  • Throat Parameter: .938" / 23.8 mm
  • Nominal Impedance: 8 Ohms
  • Minimum Impedance: 7.1 Ohms
  • DC Resistance: 6.8 Ohms
  • Power Capacity 1000 Hz to 20,000 Hz: 120 W peak60 W program30 W continuous
  • Sensitivity: 104 dB SPL 1 Watt at 1 meterOn-axis on 90º H x 45º V horn
  • Nominal Efficiency: 30%
  • Frequency Response: 1.5 kHz to 20 kHz
  • Recommended Crossover: 1,800 Hz at 12 dB / Octave
  • Lowest Recommended Crossover: 2,000 Hz at 12 dB / Octave
  • Diaphragm: Commercially pure titanium
  • Voice Coil Diameter: 1.4" / 34.4 mm
  • Voice Coil Material: Edge-wound ribbon withhigh temp Kapton bobbin
  • Flux Density: 11,500 gauss (1.15T)
  • Dimensions: 3.54" (90 mm) diameterx 2.40" (61 mm) depth
  • Horn Coupling Diameter: .938" (23.8 mm)
  • Horn Coupling Threads: Standard 1 3/8" / 18"
  • Net Weight: 33.6 oz.
  • Shipping Weight: 38 oz.
  • Voice Coil Cooling: Ferrofluid
  • Weight Unpacked: 2.26 lb(1.024 kg)
  • Weight Packed: 2.26 lb(1.024 kg)
  • Width Packed: 4.25"(10.795 cm)
  • Height Packed: 4.25"(10.795 cm)
  • Depth Packed: 3.25"(8.255 cm)
