Sennheiser XSW2-835 Wireless Lavalier Microphone System

Inspire your audience. High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions.

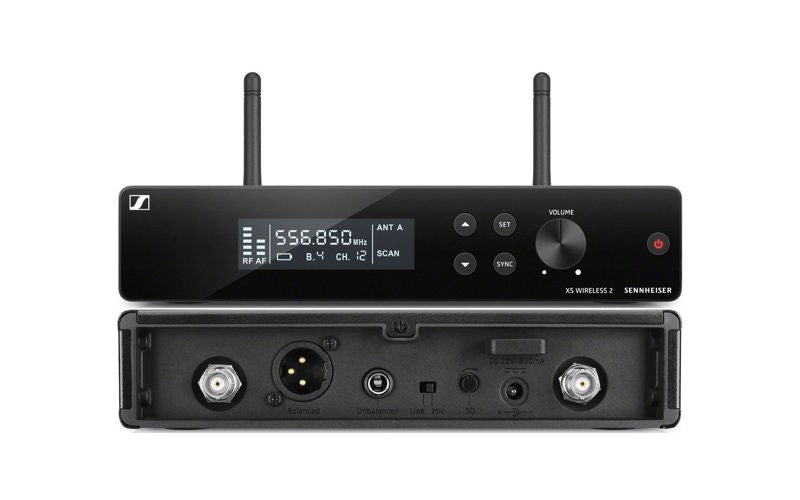

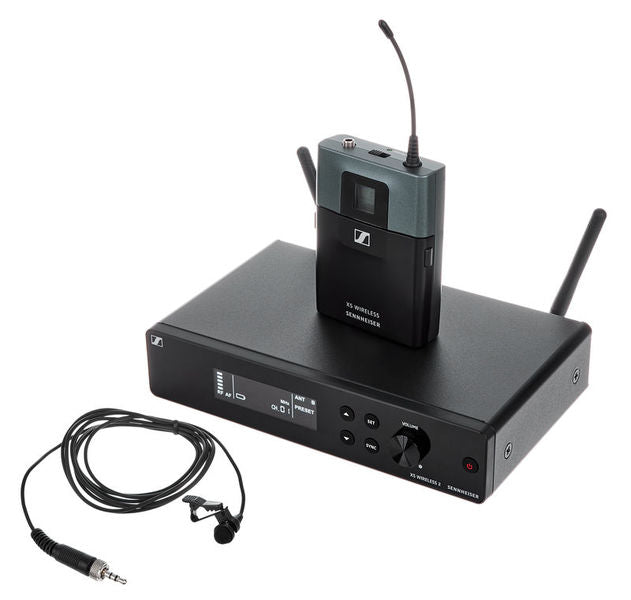

The XS WIRELESS 2 LAVALIER MIC SET is an easy to use all-in-one wireless system for presenters and moderators, excellent for a powerful and inspiring presentation. The set includes a stationary receiver for quick set-up and hassle-free handling, as well as a lightweight bodypack transmitter and an unobstrusive clip-on microphone. Metal receiver housing and rackmount kit included.

• Unobstrusive clip-on microphone for hands-free operation and compact bodypack transmitter

• True diversity receiver with metal housing

• External antennas

• Automatic frequency management and synchronization via remote channel for easy setup

• Fully tunable over a wide range of UHF frequencies

• Rackmount kit included

• Up to 12 compatible channels

Specs

Receivers:

• Dimensions: approx. 200 x 42 x 127 mm

• Weight: approx. 680g

• Power supply: 12 V DC nom. / 300 mA

• Housing: Metal

• AF frequency response: 50 to 16,000 Hz

Transmitters:

• Dimensions: approx. 71 x 96 x 28 mm

• Weight: approx. 95g

• Operating time: approx. 10 hrs

• Power supply: 2 AA size batteries, 1.5 V

• Housing: Robust ABS

• AF frequency response: 50 to 16,000 Hz (–3 dB)

• Microphone: Condenser

• Frequency response: 50 to 16,000 Hz (–3 dB)

• THD, total harmonic distortion: ≤ 0.9%

• Pick-up pattern: Omni-directional

• Signal-to-noise ratio: ≥ 103 dBA

• RF output power: 10 mW

• Switching bandwidth: up to 24 MHz

• Modulation: Wideband FM

• Output voltage: '1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu

• Diversity reception: True Diversity

• Frequency: 8 frequency banks, each with up to 12 factory-preset channels

• Frequency range: A: 548-572 MHz, GB: 606-630 MHz, B: 614-638 MHz, C: 766-790 MHz, D: 794-806 MHz, E: 821-832 MHz, 863-865 MHz, K: 925-937.5 MHz

• Sensitivity: < 3 μV at 52 dB(A)rms S/N

• Squelch: switchable from 3 dBμV to 28 dBμV (via Pilot Tone)

• Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)

• Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps

• Audio adjustment range: 40 dB, adjustable in 5-dB steps

• Line / Mic level: 20 dB, switchable

• Temperature Range: operation: 0°C to +40°C, storage: –20°C to +70°C

• Receiver Principle: double superheterodyne

What's in the box?

• 1 receiver EM-XSW 2
• 1 bodypack transmitter SK-XSW

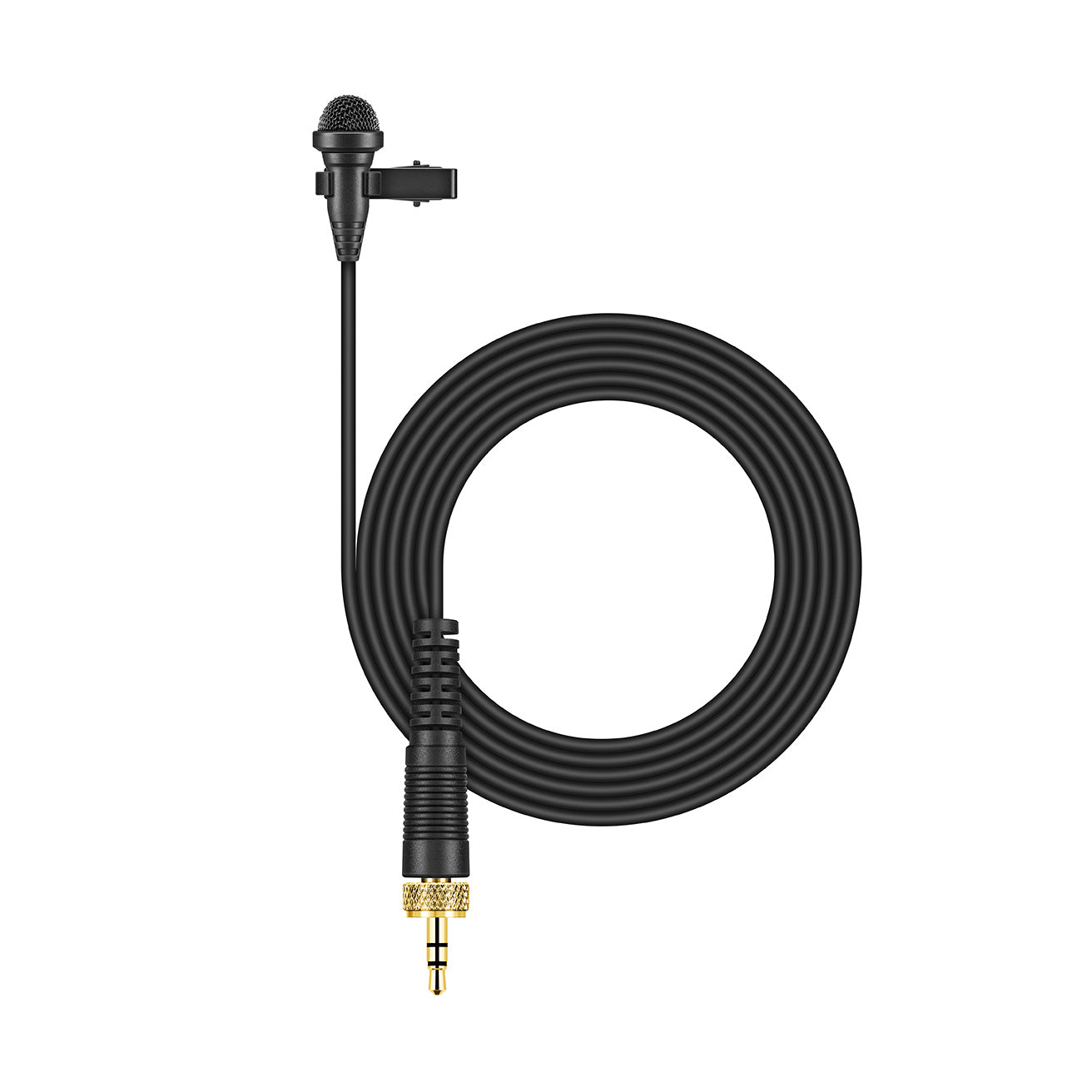

• 1 lavalier microphone ME 2-2
• 1 power supply NT 12-5 CW
• 2 AA batteries
• 1 rackmount kit
• 1 pouch
• user manual
