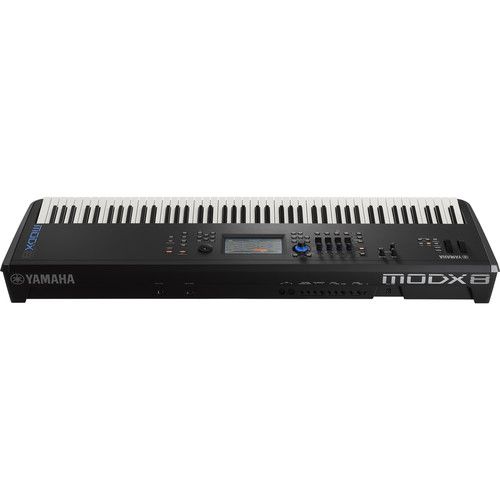

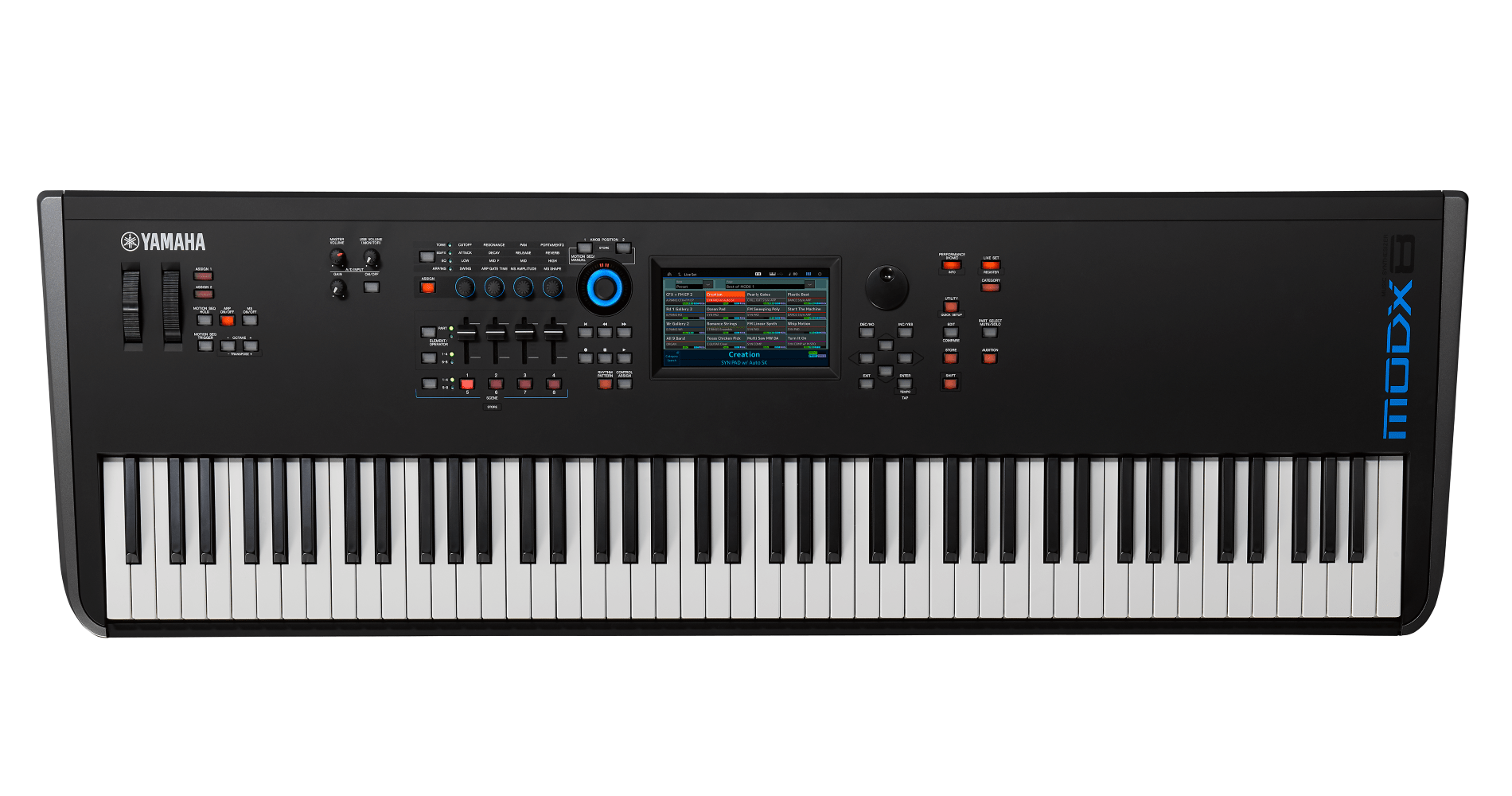

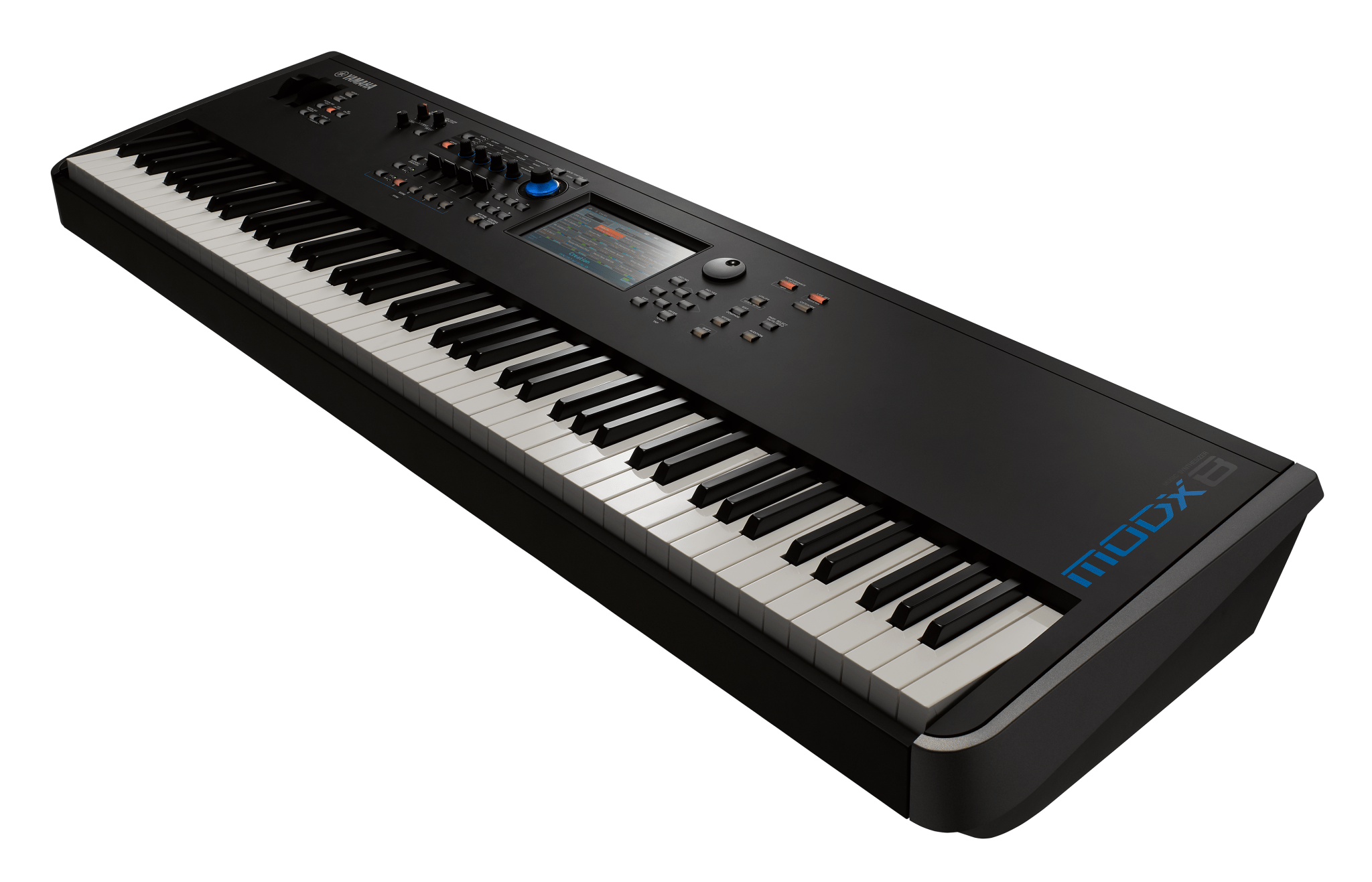

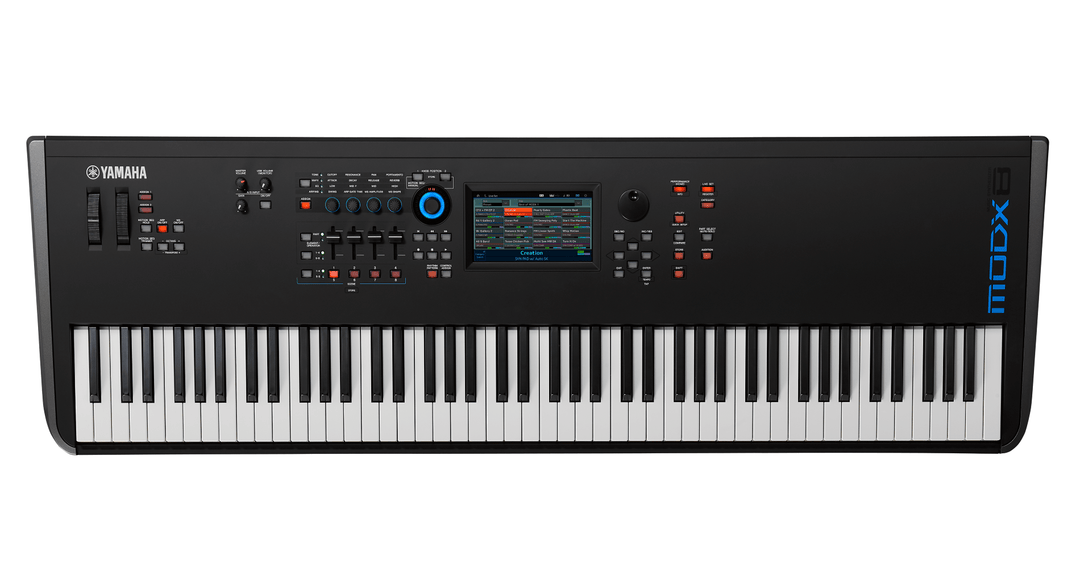

Yamaha MODX8 88-Key GHS Action Synthesizer
Yamaha MODX8 88-Key GHS Action Synthesizer
Yamaha MODX8 88-Key GHS Action Synthesizer

Yamaha MODX8 88-Key GHS Action Synthesizer

Sale price$2,949.99


For the piano player needing a piano-focused instrument with a huge variety of sound, MODX is a synthesizer with an 88-note, weighted keyboard action. MODX has over 125 years of Yamaha piano-making craftsmanship coupled with over 40 years of creating industry-leading synthesizers.

SOUND

Sound is the most important aspect of any instrument. The power of the MODX synthesis engine allows unlimited potential to create your own unique sound demanded by any artist.

The MODX sound engine is based on the same technology powering the flagship MONTAGE: AWM2 (Advanced Wave Memory 2) sample and synthesis engine and a pure FM-X (Frequency Modulation) synthesizer modernized for amazing sound playback and complex sound design.

MODX features 128-note stereo AWM2 polyphony and 64-notes of FM-X polyphony. Due to the unique architecture of MODX and MONTAGE, this polyphony is always available without latency or compromising other features.

EFFECTS

From high definition reverbs to incredibly detailed Virtual Circuit Modeling (VCM) effects, MODX is loaded with DSP innovation, power and, most importantly, sound quality. Use effects like Beat Repeat, Vinyl Break or Bit Crusher to get EDM sound. The Spiralizer effect creates the auditory illusion of a tone continually rising or falling in pitch without getting higher or lower.

You can even add a compressor with sidechain for a modern “ducking” effect. Or go retro with vintage effects like Analog Delay, VCM Phaser or a variety of Amp Simulators. Piano players will appreciate piano-focused effects like Damper Resonance for a super-realistic piano experience and the HD reverbs that let you put yourself in any performance space.

Specs

  • Keyboard: 88 key GHS (graded hammer standard) with initial touch
  • Aftertouch: No
  • Tone Generator: Motion Control Synthesis Engine AMW2: 8 Elements FM-X: 8 Operators, 88 Algorithms
  • Maximum Polyphony: AWM2: 128 (max.; stereo/mono waveforms). FM-X: 64 (max.)
  • Multi Timbral Capacity: 16 Parts (internal), Audio Input Parts (A/D*, USB*) *stereo Part
  • Wave: Preset: 5.67 GB (when converted to 16 bit linear format), User: 1.00 GB
  • Performance: Approx. 2,000
  • Filters: 18 types
  • Effects: Reverb: 12 types, Variation: 76 types, Insertion (A, B): 76 types (71 types of A/D part insertion effects), Master Effect: 15 types, Master EQ: 5 bands, 1st Part EQ: 3 bands, 2nd Part EQ: 2 bands
  • Controls: Master Volume, AD Input Gain knob, USB Volume, Pitch Bend wheel, Modulation wheel, Control Sliders x 4, Knobs x 4, Super Knob, Data dial
  • Display: 7" TFT Color Wide VGA LCD touch screen
  • Connectors: [USB TO DEVICE], [USB TO HOST], MIDI [IN]/[OUT], FOOT CONTROLLER [1]/[2], FOOT SWITCH [ASSIGNABLE]/[SUSTAIN], OUTPUT [L/MONO]/[R] (6.3 mm, standard phone jacks), [PHONES] (6.3 mm, standard stereo phone jack), A/D INPUT [L/MONO]/[R] (6.3 mm, standard phone jacks)
  • Power Consumption: 16 W (when using PA-150B AC adaptor)
  • Accessories: AC adaptor (PA-150B or an equivalent recommended by Yamaha), Owner's Manual (this book), Cubase AI Download Information
  • Live Sets: Preset: 256 and more, User: 2,048
  • Tracks: 16 Sequence tracks, Tempo track, Scene track
  • Recording type: Real time replace, Real time overdub, Real time punch in/out
  • Note Capacity: Approx. 130,000 notes
  • Note Resolution: 480 ppq (parts per quarter note)
  • Tempo (BPM): 5 300
  • Songs: 128 songs
  • Arpeggio: Parts: 8 Parts simultaneous (max.), Preset: 10,239 types User: 256 types
  • Sequence formats: MODX original format, SMF formats 0, 1
  • Dimensions (W x H x D): 1,333mm (52-1/2") x 160mm (6-1/16") x 404mm (15-7/8")
  • Weight: 13.8 kg (30 lbs 7 oz)
