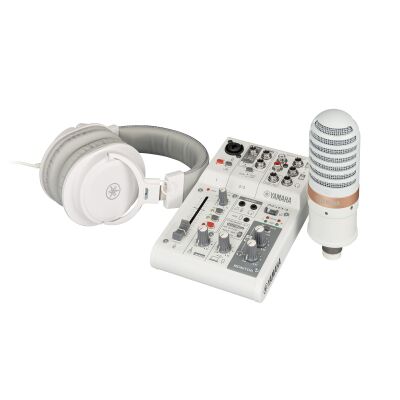

Yamaha AG03MK2 LSPK USB Loopback Live Streaming Kit - White

The AG03MK2 LSPK (Live Streaming Package) is a full-streaming setup that includes, and centers around, an AG03MK2 3-channel mixer the successor to the AG03 console that has become a mainstay of the personal live streaming market. The package also includes a YCM01 cardioid condenser microphone ideal for live vocal or instrument performances, as well as YH-MT1 high-fidelity headphones, and an XLR mic cable to complete this simple yet powerful streaming station.

Ideal for beginners or users building a new system from scratch, LSPK packages and their respective products come in either black or white, for a unifying aesthetic that makes it easier to adapt your new system to your particular streaming environment.

Features
• New design with two models in black and white
• AG03MK2: 3-channel Live Streaming mixer with USB audio interface
• YCM01: Studio-quality condenser microphone (XLR, Cardioid type)
• YH-MT1: Studio-quality headphones
• XLR microphone cable (3 m, Black)

AG03MK2 Specifications
Input Channels:
- Mono[MIC/LINE]: 1 - Combo (Mic, +48 V phantom power / Line), 3.5 mm (1/8") stereo mini (Headset mic, Plug-in power)
- Stereo[LINE]: 1 - Stereo Line / Guitar Input (Mono)
- Smartphone: 1 - 4-pole mini input/output (TRRS)
- USB: 1
Output Channels:
- PHONES: 1 - PHONES / HEADSET PHONES
- Smartphone: 1 - 4-pole mini input/output (TRRS)
- MONITOR OUT: 2 - L/R Stereo: Phone, RCA
- USB: 1
Bus: 1 Stereo
Functions:
- MUTE button x 1
- PAD button x 2
- HI-Z button x 1
- STREAMING OUT (DRY CH 1-2G / INPUT MIX / LOOPBACK)
- MIX MINUS MIC (ON / OFF)
Power requirements: 5 V DC, 900 mA
Power consumption: Max. 4.5 W
Dimension WxHxD: 126 x 63 x 201 mm
Weight: 0.8 kg

YCM01 Specifications
Microphone Unit: Back electret condenser type
Polar Pattern: Cardioid
Address Type: Side
Frequency Response: 30 Hz - 20 kHz
Max Input SPL: 130 dB (THD ≦ 1.0 ％ at 1 kHz)
Sensitivity: -37 dB 3 dB (0 dB=1V/Pa, at 1kHz)
Connector: XLR
Dimensions (Microphone Only): ⌀55 x 166 mm (⌀2.2" x 6.5")
Weight (Microphone Only): 0.4 kg (0.9 lbs)
Included Accessories: Microphone stand adaptor x 1, Microphone pouch x 1, Owners manual, Technical specifications
