Lightweight yet powerful, Yorkville's new YXL line promises high definition and power in easilly manageable formats.
Designed as an all-purpose speaker with the Musician & DJ in mind, each YXL cabinet features 3 channels. The cabinet supports Bluetooth streaming and EQ pushbutton controls for Concert, Club & Monitor modes.
YXL10P Details:
• Program Power: 500 Watts Program (1000 Watts Peak)
• 10-inch woofer with 2-inch voice coil
• 3 Channels plus Master level
• 1-inch compression driver
• 90 x 40 degrees HF dispersion
• ABS / Polypropylene cabinet construction
• Bluetooth streaming
• 3 performance modes (Concert, Club, Monitor)
YXL10P Specifications:
• System Type - Active Loudspeaker
• Active or Passive - Active
• Power Rating (Watts) - 500 Watts Program (1000 Watts Peak)
• Max SPL (dB) - 126dB Peak
• Frequency Response (Hz +/- 3dB) - 55 - 16k (Hz +/-3dB)
• Dispersion (H x V) - 90 x 40
• Crossover Frequency (Hz) - 1.6kHz
• HF Horn - Integrated into Baffle
• LF Driver(s) - 10-inch (2-inch voice coil)
• LF Power Rating (Watts) - 450 Watts Program (900 Watts Peak)
• HF Power Amplifier (Watts) - 50
• HF Amplifier Type - Class A/B
• LF Amplifier Type - Class D
• Cooling Scheme - Speed controlled fan
• Power Cable - Yes
• Power Switch - Yes

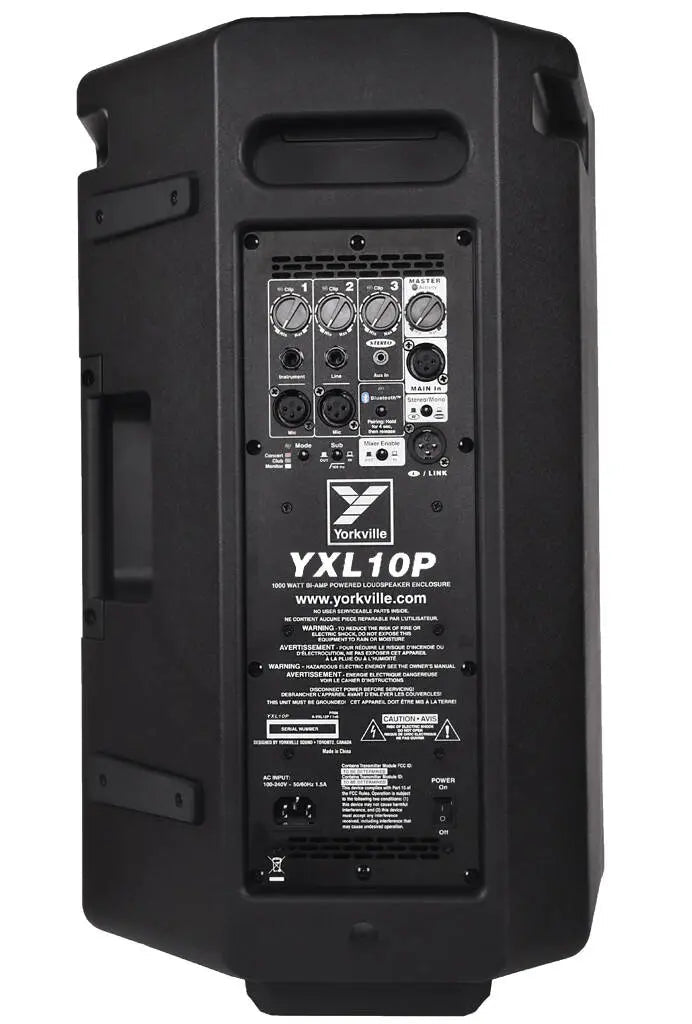

• Inputs - 2 x XLR, 2 x 1/4", 1/8", Bluetooth and Main in (XLR)
• Level Controls - x3 Chanels + Master
• EQ Controls - Push button select, Concert, Club, Monitor
• Limiter - Multiband excursion, RMS, rail
• Other Controls / Features - Sub mode HP filter, Mixer IN/OUT, Stereo/Mono out, 3.5mm Aux in, BT streaming
• Feet - Rubber
• Bar Handles - 1 x Side / 1 x Back
• Flying Hardware - 2 (Top), 1 (Pullback)
• Enclosure Materials - Polypropelene, Metal grille
• Baffle Material - Polypropylene
• Grille - Powder Coated Steel with Grille Cloth
• Other Details - Rubber feet on bottom and side with the monitor Wedge
• Dimensions (DWH xbackW, inches) - 11 x 13.25 x 20.5
• Dimensions (DWH xbackW, cm) - 28 x 33.5 x 52
• Weight (lbs/kg) - 28 / 14
