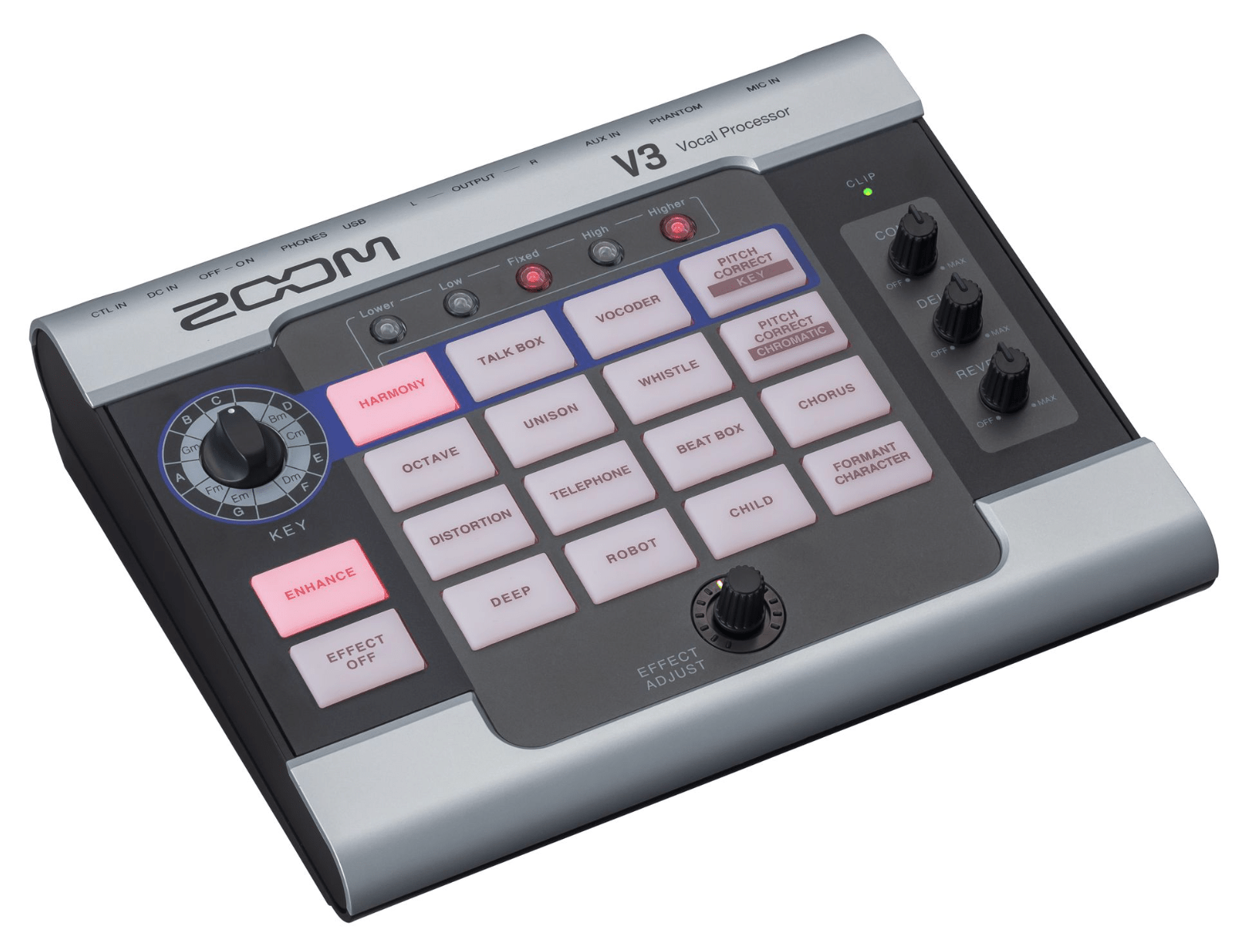

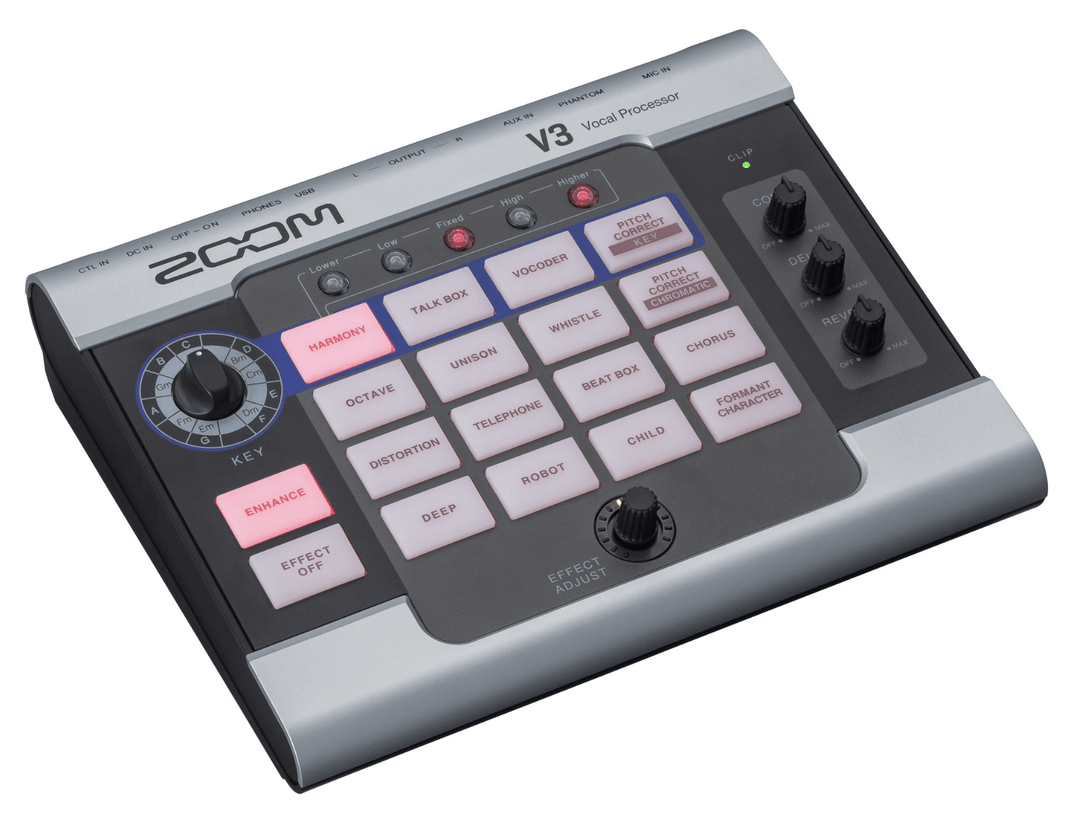

Zoom ZV3 Vocal Effects Processor
Give Your Voice New Dimensions
Whether you’re streaming, recording, or collaborating online, the V3 is packed with effects, harmonizing options, pitch correction and more. Your voice will sound amazing - from home, or anywhere else.
V3 Features
- V3 offers 16 creative voice effects plus compression, reverb, delay and enhance
- Add up to two voices to create 3-part harmonies across a full octave
- Independent compression, reverb and delay controls
- Built-in Enhancer for increased sound clarity
- 48V phantom power for condenser microphones
- USB 2.0 audio interface capable of recording up to 16/24/32-bit, 44.1 kHz
- Line outputs for connecting to PA systems or mixing consoles
- Headphone output with dedicated volume control
- Auxiliary input
- Operates for 3.5 hours on 4 AA batteries or with Zoom AD-16 AC adapter
-

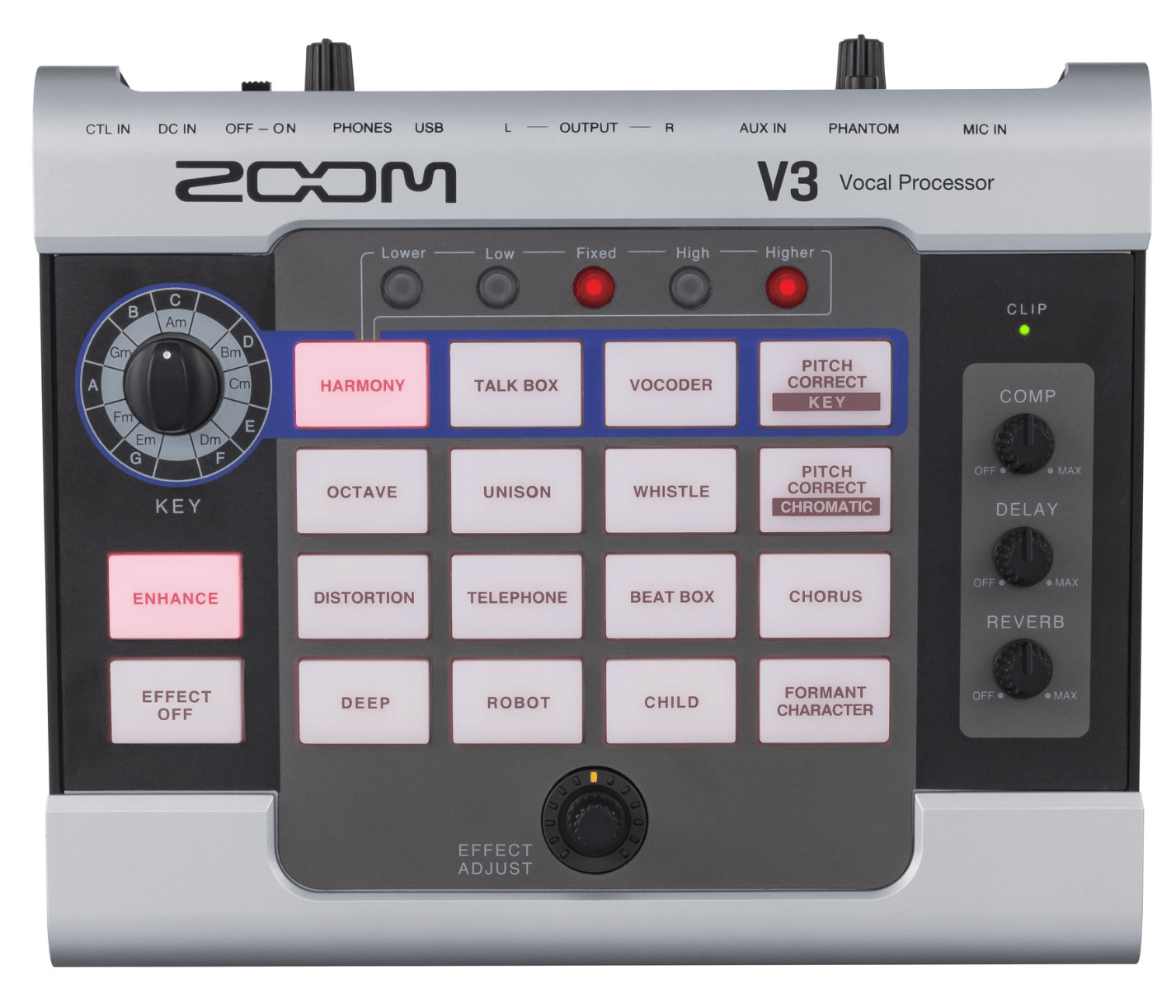

Harmony Selection
Select the intervals to be used for harmony
-
Key Select Knob
Select the key used for harmony and pitch correction
-
Enhance Button
Turn enhance on/off
-
Effects Selection Buttons
Activate one of 16 effects
-
Effect Adjustment Knob
Adjust the selected effects parameter
-
Compressor/Delay/Reverb Knobs
Adjust levels for each effect
-
XLR Input
XLR input for Microphone
-
Phantom Power Button
Turn phantom power (+48v) on/off
-
Volume Knob
Adjust the microphone input volume
-
AUX IN Jack
Connect devices such as portable music player
-
Output Jacks
1/4" output connections for PA systems, recorders etc
-
USB Port
USB connection for Audio interface or power from mobile batteries
-
Headphone
1/4" connection
-
Headphone Volume Knob
Adjust headphone volume level
-
Control Input
Connect optional foot switch (FS-01) or expression pedal (FP-02M)
-
DC9V Input
Connect ZOOM adapter AD-16
Specs
Effects
EFFECTS: | 16 types |
CONCURRENT EFFECTS: | 5 |
SAMPLING FREQUENCY: | 44.1 kHz |
A/D CONVERSION: | 24-bit 128× oversampling |
D/A CONVERSION: | 24-bit 128× oversampling |
SIGNAL PROCESSING: | 32-bit |
FREQUENCY RESPONSE: | 20 Hz–20 kHz (+1 dB/−3 dB) (10 kΩ load) |
INPUTS
MIC IN: | XLR jack |
INPUT GAIN: | +3 – +40 dB |
MAXIMUM INPUT LEVEL: | +4 dBu |
INPUT IMPEDANCE: | 3 kΩ or higher (1 kHz) |
PHANTOM POWER: | +48 V |
AUX IN: | Stereo mini jack |
RATED INPUT LEVEL: | −10 dBu |
INPUT IMPEDANCE (LINE): | 22 kΩ |
OUTPUTS
L/R OUT: | Unbalanced TS jacks |
MAXIMUM OUTPUT LEVEL: | +6 dBu |
OUTPUT IMPEDANCE: | 100 Ω |
PHONES: | Stereo mini jack |
MAXIMUM OUTPUT LEVEL: | 20 mW + 20 mW (into 32 Ω load) |
EQUIVALENT INPUT NOISE (WHEN PHANTOM POWER OFF): | –125 dBu or less (A-weighted, 150 Ω input, +40 dB input gain) |
NOISE FLOOR (RESIDUAL NOISE): | –75 dBu |
CONTROL INPUT: | FS01/FP02M input |
POWER
POWER: | AC adapter (9 V DC 500 mA, center negative) (ZOOM AD-16) 4 AA batteries (about 3.5 hours continuous operation time when using alkaline batteries) |
USB: CONNECTOR: | Micro USB |
AUDIO INTERFACE OPERATION: | 2-in/2-out USB2.0 Full Speed, 44.1 kHz, 16/24/32-bit |
Power can also be supplied through the USB port. | |
When using a cable designed only for power, other USB functions cannot be used. |
WEIGHTS AND DIMENSIONS
EXTERNAL DIMENSIONS: | 150 mm (D) × 190 mm (W) × 50 mm (H) |
WEIGHT: | 0.59 kg (excluding batteries) |
